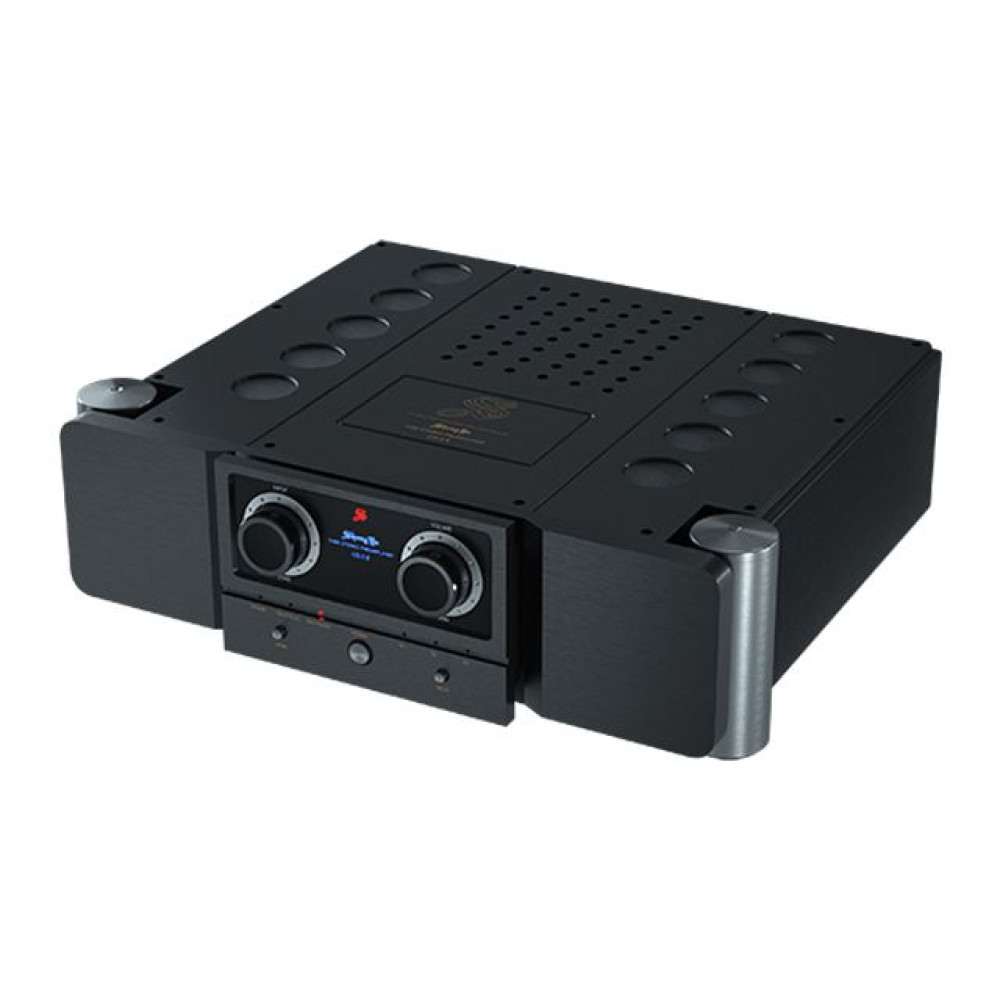

CS-3.8 電子管電晶體混合式全平衡前置放大器
HYBRID STEREO PREAMPLIFIER
Optical fiber, coaxial digital support: 16-24Bit, 44.1-192kHz, DOP64
USB support: PCM: 16-32Bit, 44.1-384kHz, DSD64, DSD128, DSD256, DSD512
Frequency response: 20Hz - 50kHz ± 0.05dB
Rated output voltage: 2V (unbalanced)
Maximum output voltage: 30V (unbalanced)
Harmonic distortion: ≤0.03% (1kHz 2V)
Input sensitivity: 200mV (unbalanced)
Signal-to-noise ratio: ≥95dB
Input impedance: 47kΩ
Overall dimensions (width x height x depth): 446 x 142 x 415 (mm)
Weight: 12.5kg
